PERFORMANCE
| Processor | Intel Core™ i3-13100T, 4C (4P + 0E) / 8T, P-core 2.5 / 4.2GHz, 12MB Intel® Smart Cache |
|---|---|
| Graphics | Integrated Intel® UHD Graphics 730 |
| Chipset | Intel® Q670 Chipset |
| Memory | 2x 8GB SODIMM DDR4-3200 |
| Memory Slots | Two DDR4 SODIMM slots, dual-channel capable |
| Max Memory | 16GB DDR4-3200 |
| Storage | 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Max Storage Support | One drive, 256GB M.2 2280 SSD |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC256VB codec |
| Power Supply | 90W 89% Adapter |
CONNECTIVITY
| Ethernet | Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN |
|---|---|
| WLAN + Bluetooth | Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |

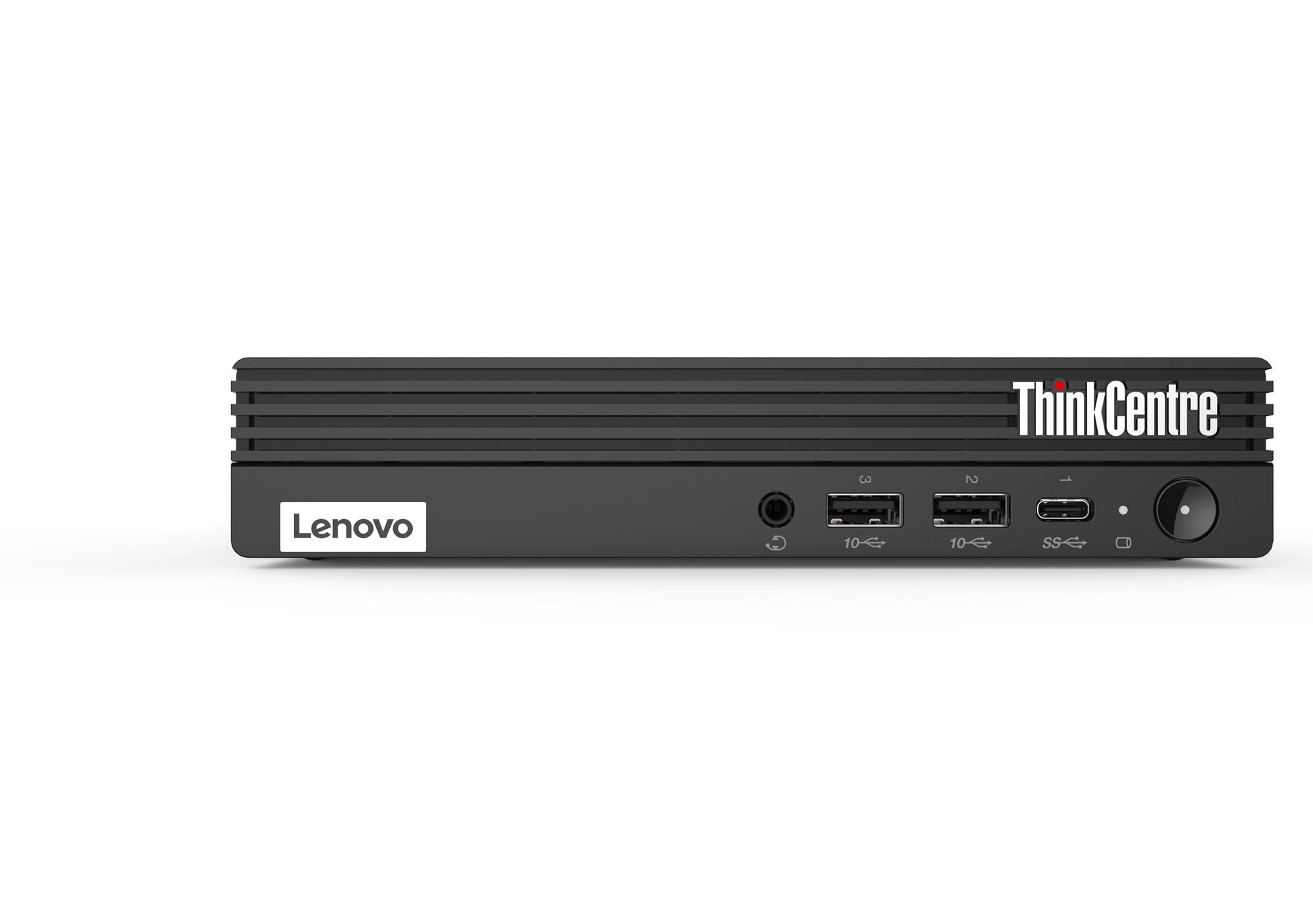

| Front Ports | 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1, for ThinkSmart® controller) ; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) ; 1x headphone / microphone combo jack (3.5mm) |

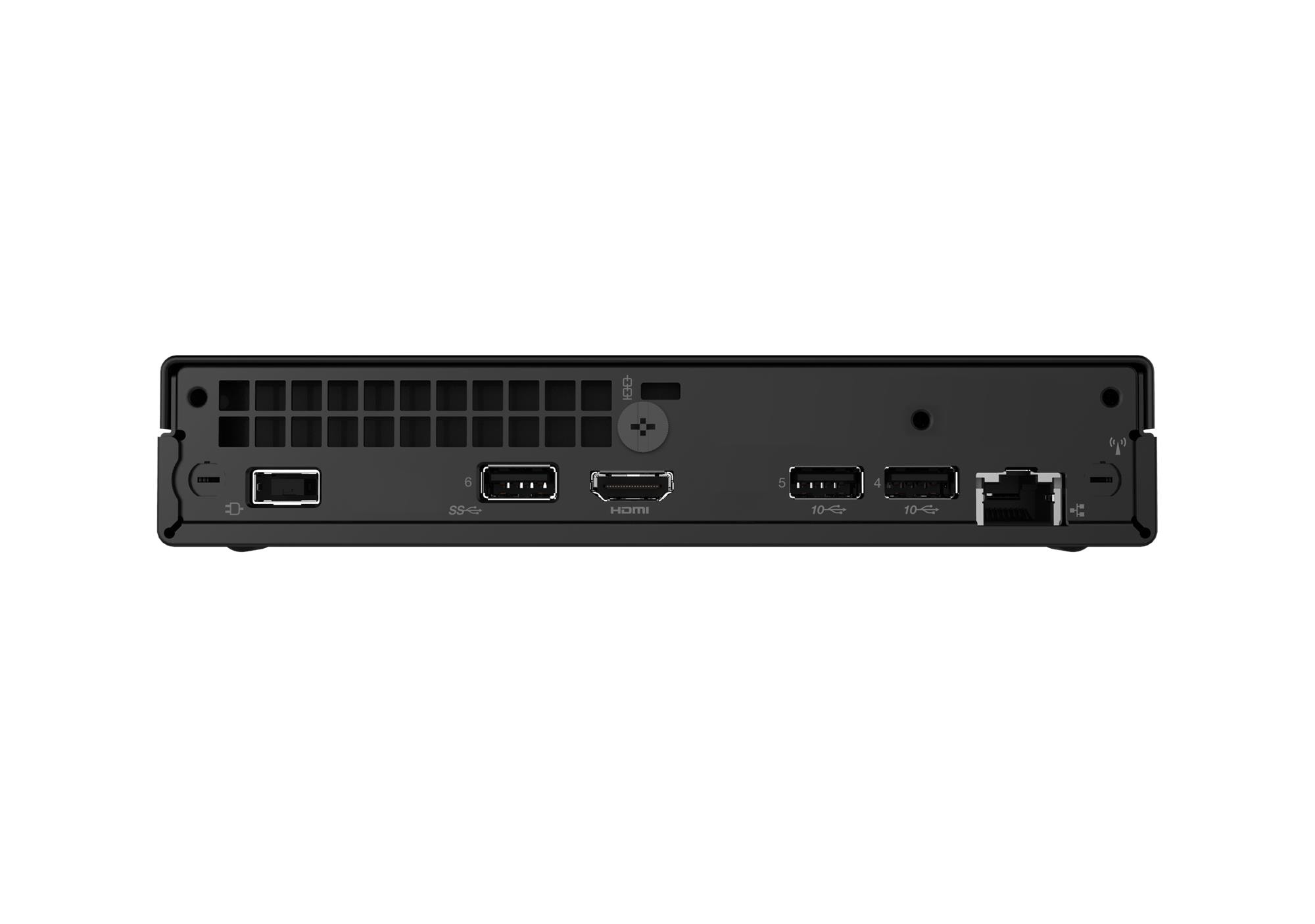

| Rear Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) ; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2, one for HDMI® ingest dongle) ; 1x HDMI® 2.1 TMDS ; 1x Ethernet (GbE RJ-45) |
DESIGN
| Adapter Cage | Adapter Cage |
|---|---|
| Mounting | VESA Mount + Wall / Table Mount Bracket |

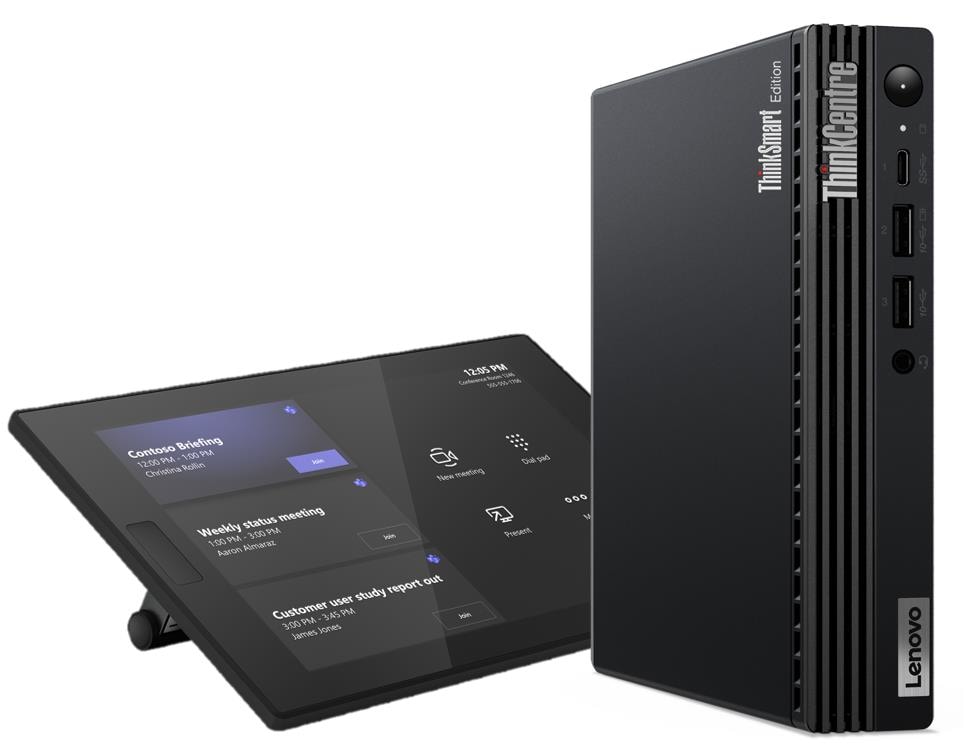

| Controller | ThinkSmart® Controller |
| Case Color | Black |
| Dimensions (WxDxH) | Tiny only, 179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches) ; ThinkSmart® controller, 269.46 x 84.34 x 168.1 mm (10.61 × 3.32 × 6.62 inches) |
| Weight | ThinkSmart® controller, 811 g (1.79 lbs) ; Tiny only, Around 1.2 kg (2.65 lbs) |
SECURITY & PRIVACY
| Security Chip | Discrete TPM 2.0, TCG certified |
|---|---|
| Physical Locks | Kensington Security Slot™ |
SERVICE
| Base Warranty | 1-year, Onsite |
|---|---|
| Included Upgrade | 1Y Premier Support Upgrade from 1Y Onsite |
SOFTWARE
| Operating System | Windows® 11 IoT Enterprise for Collaboration GAC 64, Polish / English |
|---|
ACCESSORIES
| Bundled Accessories | HDMI® Ingest Dongle |
|---|
