PERFORMANCE
| Processor | Intel Core™ Ultra 7 165H, 16C (6P + 8E + 2LPE) / 22T, Max Turbo up to 5.0GHz, 24MB Intel® Smart Cache |
|---|---|
| Graphics | Integrated Intel® Arc™ Graphics |
| Chipset | Intel® SoC Platform |
| Memory | 2x 16GB SODIMM DDR5-5600 |
| Storage | 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Power Supply | 170W 89% Adapter |
CONNECTIVITY
| Ethernet | Integrated 100/1000M |
|---|---|
| WLAN + Bluetooth | Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |
| Compute Unit Ports | 2x USB-C® (USB 10Gbps / 3.2 Gen 2), with DisplayPort™ 1.4 ; 1x USB-C® in (USB 5Gbps / USB 3.2 Gen 1), with 45W power supply and DisplayPort™ 1.4 ; 3x USB-A (USB 5Gbps / USB 3.2 Gen 1) ; 1x USB-A (Hi-Speed USB / USB 2.0) ; 1x HDMI®-in 2.1 TMDS ; 2x HDMI®-out 2.1 TMDS ; 1x Ethernet (RJ-45) ; 1x DC-in |
DESIGN

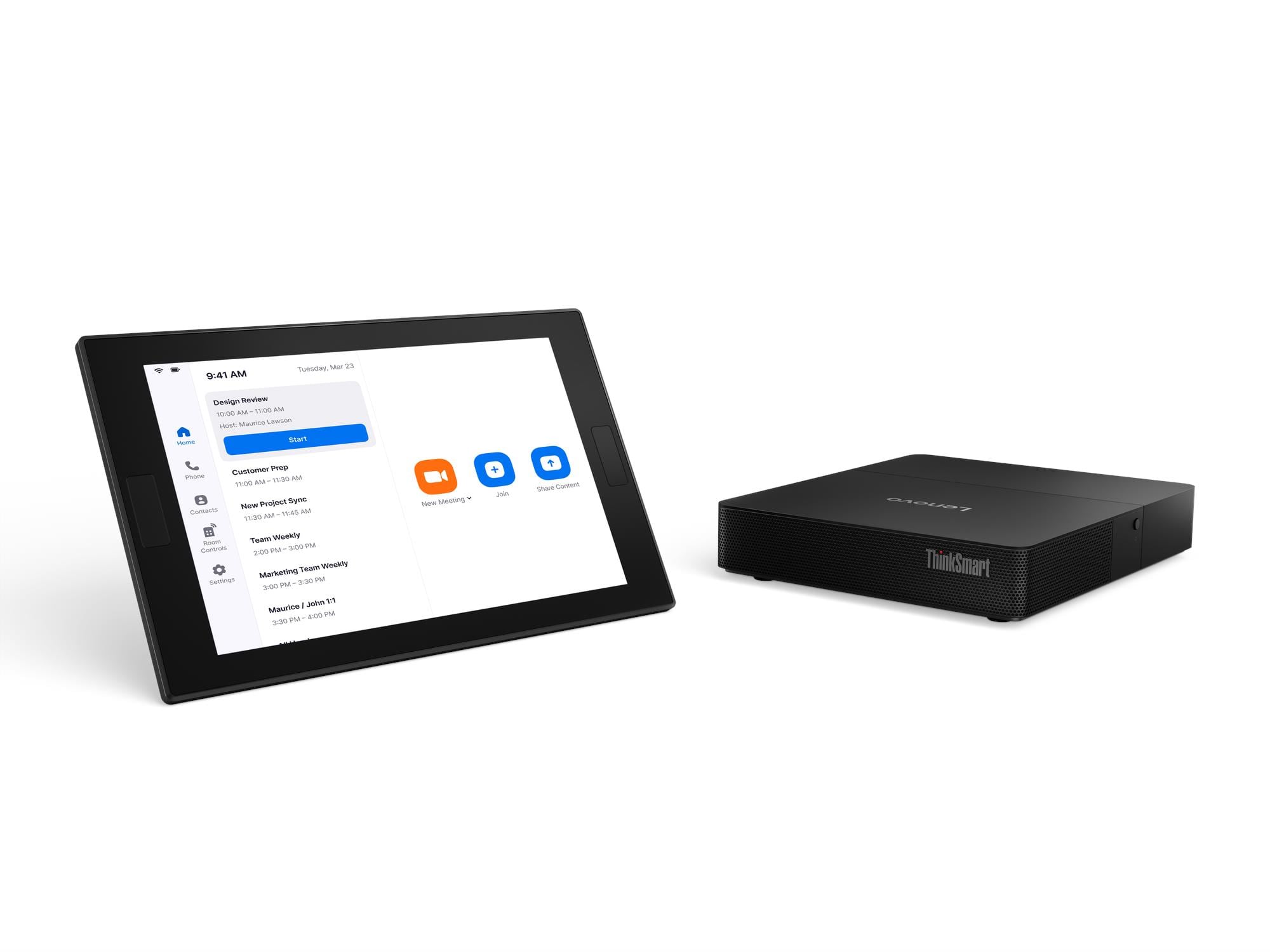

| Component Options | ThinkSmart® Core Gen 2 ; ThinkSmart® Controller |
|---|---|
| Controller | ThinkSmart® Controller, 10.1" Touch Controller, Multi-touch, 1920*1200, 16:10, USB-C®, 3.5mm headphone |
| Audio Bar | None |
| Microphone Component | None |
| Camera Component | None |
| Case Color | Black |
| Dimensions (WxDxH) | Compute Unit With Cable Management, 185 x 220 x 38 mm (7.28 x 8.66 x 1.50 inches) + ThinkSmart® Controller, 265.5 x 13 x 168.1 mm (10.5 x 0.5 x 6.6 inches) |
| Weight | Compute Unit, 1.01 kg (2.23 lbs) + ThinkSmart® Controller, 753.8 g (1.7 lbs) |
MANAGEABILITY
| System Management | Intel® vPro® |
|---|
SERVICE
| Base Warranty | 3-year, Onsite |
|---|---|
| Included Upgrade | 3Y Software Maintenance for Smart Office Solution, 3Y Premier Support Upgrade from 3Y Onsite |
CERTIFICATIONS
| Other Certifications | Zoom Room Certification |
|---|
SOFTWARE
| Operating System | Windows® 11 IoT Enterprise GAC 64, Polish / English |
|---|---|
| Bundled Software | Zoom Rooms |
ACCESSORIES
| Bundled Accessories | External Adapter Cage + Removable Cable Management Box + USB-C® to USB-C® 3M™ Active Optical Cable + VESA Mount Bracket |
|---|
